A Zimmer frame is the three-sided metal walking frame you see in hospitals and homes. You step in from the open back, hold the grips, move the frame a short way forward, then walk up to it. Repeat. Some people call it a walking frame. Same product.
This page is for people in the UK choosing one for the house. You need to know whether it will go through your doors, how high the handles should sit, whether it folds for a car, and whether you want rubber tips on all four legs or small wheels on the front so you push instead of lift.
Key takeaways
- If you can lift the frame each step, rubber tips on all four legs grip the floor. If lifting is hard, look at a frame with small wheels on the front, and rubber tips at the back.
- Measure the gap with every door open, then pick the widest frame that still goes through. A wider base is more stable.
- Stand in usual shoes. The handles should sit near the crease of your wrist. Drive’s folding frames go higher than some cheaper frames.
- If you want a seat, a bag and brakes, you want a rollator, not a Zimmer frame.
- The NHS notes that a walking frame gives more support than a stick, that height matters, and that you can sometimes borrow one after an assessment. See NHS guidance on walking aids.
What a Zimmer frame is
The basic design has changed little since the 1950s: a lightweight, roughly waist-high, three-sided metal frame, open at the back. Most UK frames are hollow aluminium. The handles adjust for height. Many fold for a car or a cupboard.
Rubber tips on the legs grip the floor. Shops call those tips ferrules. Some frames have small wheels or plastic sliders on the front legs so you push rather than lift.
Four small wheels on a walking frame, with brakes and often a seat, is a different product. That is a rollator.
A quick way to narrow your choice
Start with the job, then check the actual model against your doors and your height. No one design suits every balance or strength problem. If you are unsure, ask a physiotherapist, an occupational therapist, or a mobility shop to set the height with you standing in the shoes you will wear.

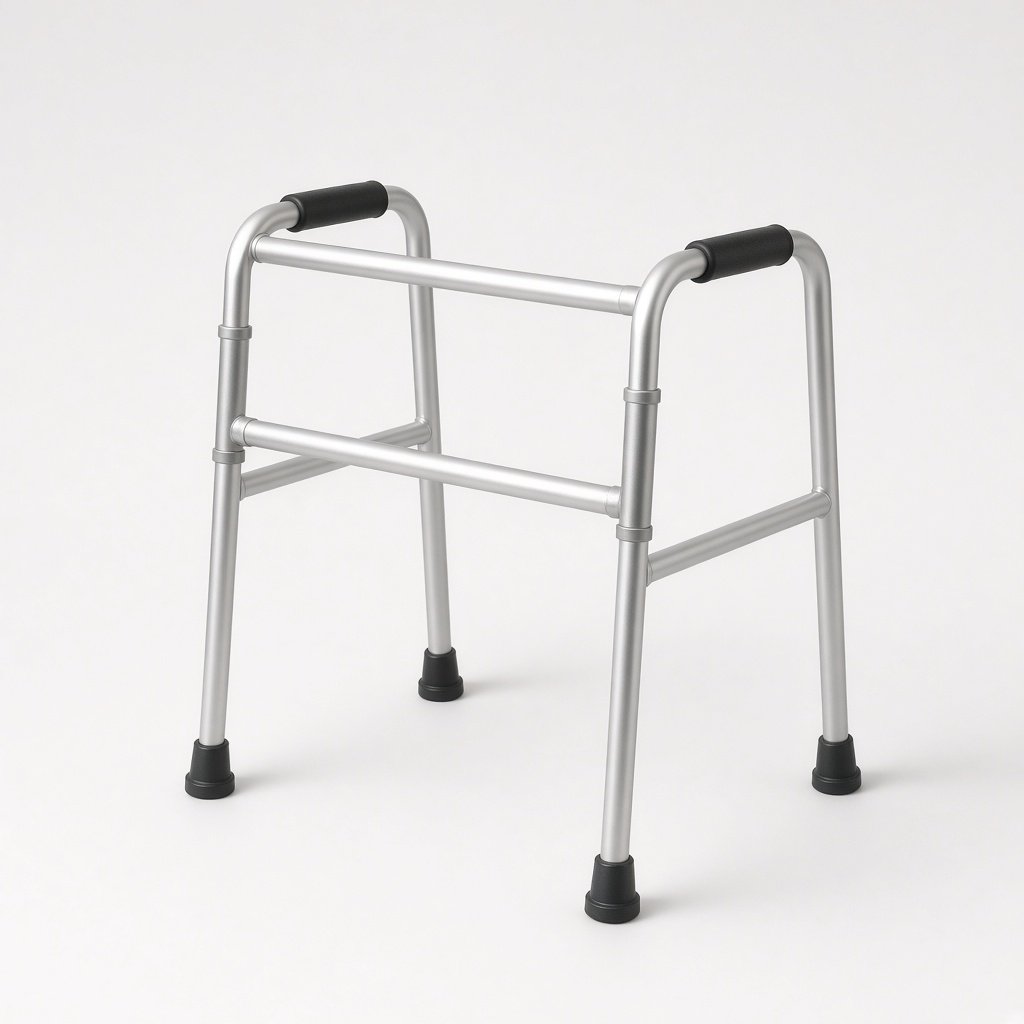

Rubber tips on all four legs
- What it is for
- Indoor use if you can lift the frame each step. The tips hold still on the floor.
- What to check
- How heavy the frame is to lift. How well the tips grip. Handle height.

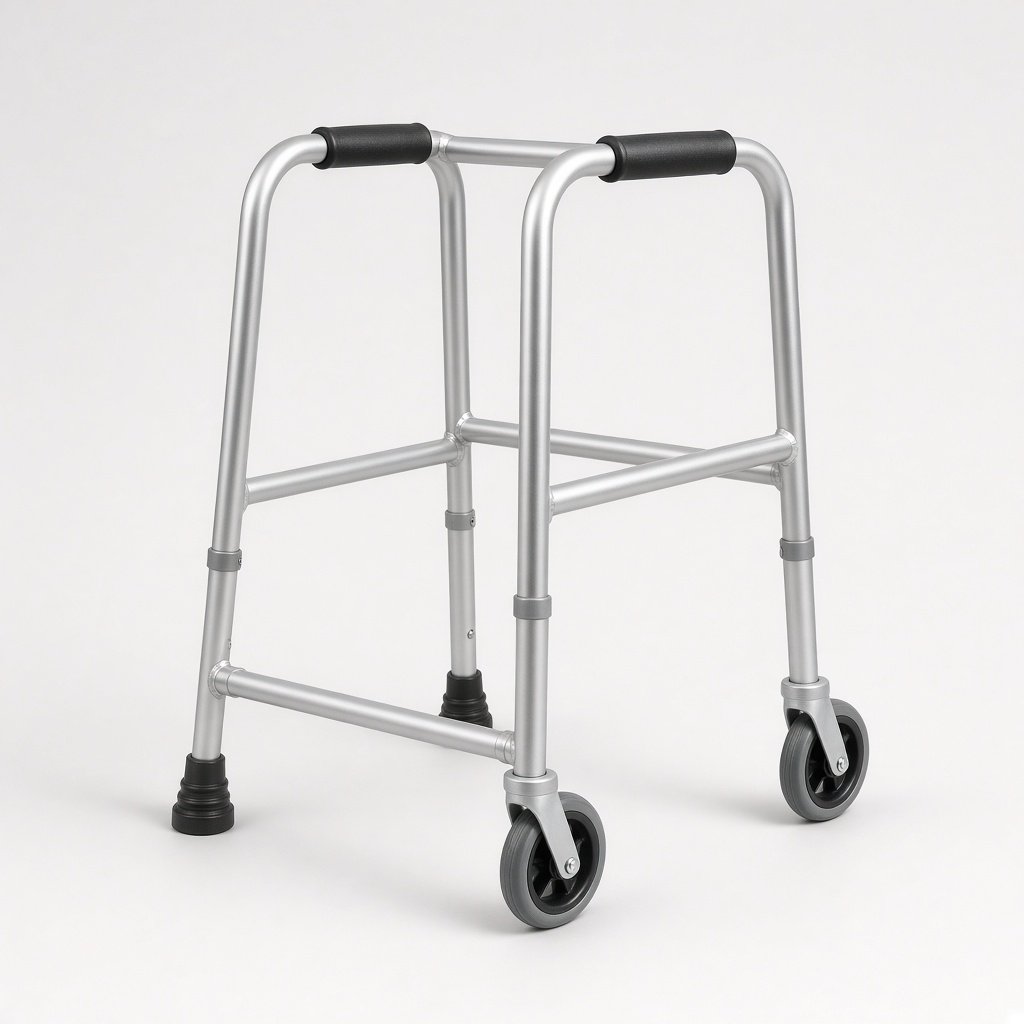

Small wheels on the front
- What it is for
- Less lifting. Rubber tips at the back still hold the frame still.
- What to check
- Those front wheels usually do not turn sideways. You may still lift the frame to turn a tight corner.

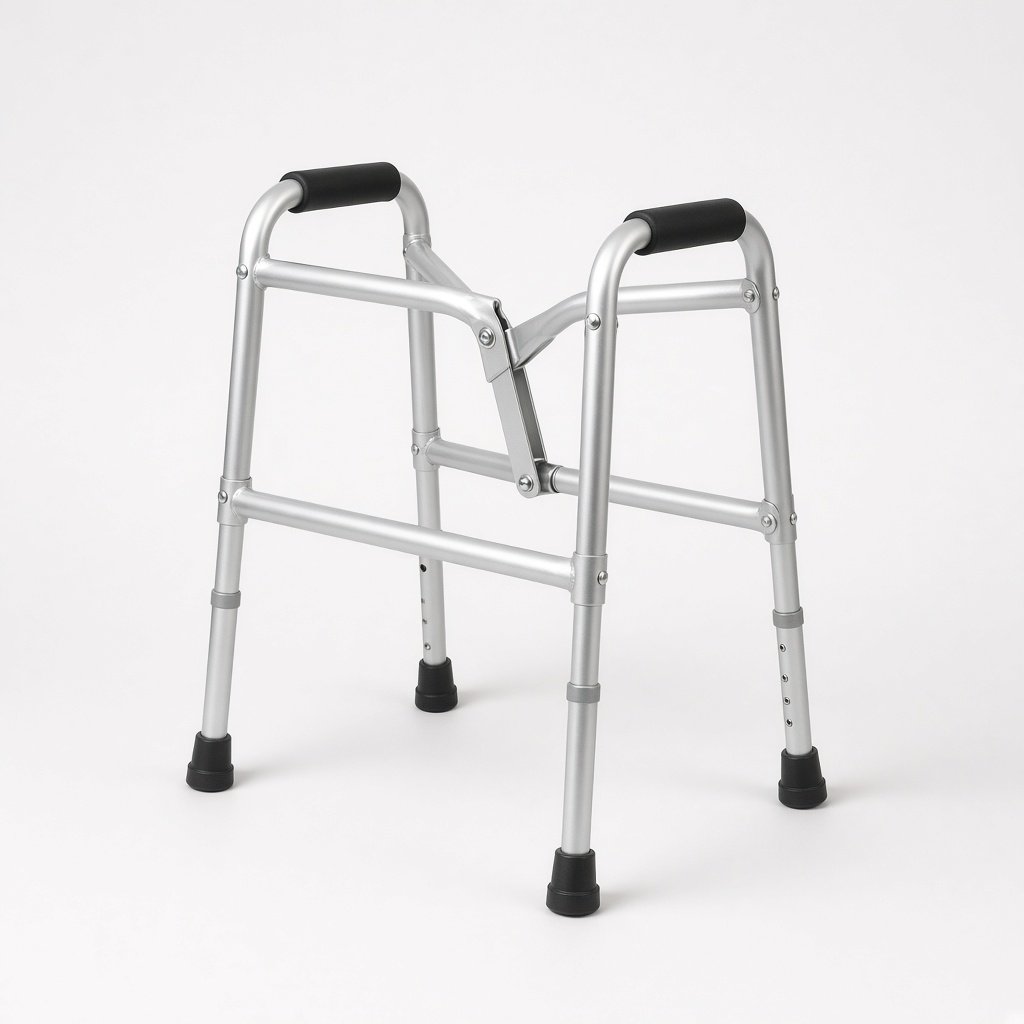

Folding
- What it is for
- The car, a cupboard, or moving between rooms.
- What to check
- How it locks open. Folded size.
Narrow, for tight halls
- What it is for
- Tight halls and doorways.
- What to check
- A narrower base can feel less stable from side to side. Try it with the person who will use it.
Frames to compare
Here are three walking frames people in the UK often look at, plus plastic sliders if you want to slide a frame rather than lift it. Check today’s price in the box under each one. Sizes can vary by seller, so match the model name and the width to your doorways before you buy.
Elite Care folding aluminium walking frame — simple frame, rubber tips all round
Folding lightweight aluminium walking zimmer frame walker - adjustable height
- The legs have a ferrule tip for comfort and security. Two comfortable handles to grip
- Excellent folding mechanism for easy transportation and storage.
- Made from lightweight aluminium tubing. Height adjustable 72cm to 85cm / 28.5" to 33.5"
Free shipping
A classic folding frame: aluminium, handgrips, and rubber tips on all four legs. It is about 25″ (64 cm) wide and 21″ (53 cm) deep, with handles that adjust from 32″ to 35.5″ (81–90 cm), and is rated for users up to 115 kg / 18 stone. That height band is shorter at the top than the Drive frames below, so measure from your wrist to the floor before you order.
This suits someone who wants a simple indoor frame they can fold. Choose a two-wheel frame instead if lifting is hard, or if you need a higher handle setting or a higher weight limit.
Drive folding frame with front wheels (WA009)
Drive DeVilbiss Healthcare Folding Lightweight Aluminium Walking Frame with Wheels
- Lightweight walking frame is suitable for indoor and outdoor use
- Excellent folding mechanism for easy storage and transportation
- Each side operates independently to allow easy movement through narrow spaces and greater stability while standing
Free shipping
The Drive WA009 is a folding walking frame with small wheels on the front, so you can push it rather than lift it every step. Rubber tips on the back legs still hold it still. It is 25″ (62 cm) wide — measure your doors — and the handles adjust from 32″ to 39″ (81–99 cm). It weighs 3.4 kg and is rated up to 28 stone (180 kg). The front wheels do not turn sideways, so you may still need to lift the frame to get round a tight corner.
Drive also make the WA008. It folds the same way and has the same handle-height range, but there are no front wheels. It is narrower, at 22″ (55 cm), a little shorter front to back, and a bit lighter at 2.9 kg. Pick WA009 if you want wheels. Pick WA008 if you would rather lift the frame and need that extra inch through a doorway.
- Drive with front wheels (WA009) — you find lifting a frame hard, and 25″ will go through your doors.
- Drive without wheels (WA008) — you want the Drive fold and height, a 22″ frame, and no wheels.
- A rollator instead — you need a seat and brakes.
Aidapt ultra-narrow walking frame — tight doorways
Aidapt Ultra Narrow Lightweight Walking Frame with Wheels Small (Eligible for VAT relief in the UK)
- WALKING AID: Can offer extra stability and support when walking around the home
- LIGHT BUT ROBUST: Aluminium materials make this very strong but light and easy to lift and move around
- COMFORTABLE ERGONOMIC HANDLES: Soft ergonomic handles offer comfort and ease of grip
Aidapt’s ultra-narrow frame is for tight halls and doors. It is just under 19″ wide, with handles from 34″ to 39″, front wheels, rubber tips at the back, and a 28 stone weight limit. That is a much smaller footprint than a 25″ frame, so try it with the person who will use it, especially if they put more weight on one side.
Choose this if a standard 25″ frame will not pass your doors. Choose a wider frame if you want a broader, more stable base.
Walker glides — an add-on, not a different frame
Good Ideas WALKER GLIDERS (757) Extra Stability & Mobility For Walkers OR Zimmerframes
- Don’t let carpet or uneven surfaces compromise your walker’s safety!
- Improve the balance of your walking aid but also create a smoother glide over all surfaces
- Set of two, insert easily into most standard 1 ½" diameter legs.
Nylon sliders push into many standard 1.5″ frame legs (typically about 3.5″ long by 1.25″ wide) so you can slide a frame over indoor floors instead of lifting it. Only use fittings the frame maker allows. They are not a substitute for wheels outdoors, and they will not suit every frame or every floor.
Check the frame against your home
How wide, and will it go through the door?
UK frames often come in three width bands: a standard / hospital style around 25″ (about 64 cm), a domestic style around 22″ (about 56 cm), and ultra-narrow around 18–20″ (about 46–51 cm). Drive’s own pair shows that split in millimetres: WA009 62 cm overall, WA008 55 cm overall.
Measure the clear opening of every door the frame must pass — the gap with the door open, not the size of the door itself. Frames are often a little narrower at the front than at the rear (commonly about 2″ per side, so up to about 4″ difference). Measure the widest point of the frame, usually the rear, and allow a little extra so knuckles and rubber tips do not scrape the door frame. A wider base is more stable. A narrower frame is easier in a tight hall. Pick the widest frame that still goes through.
Handle height and storage
If the grips are too low you stoop. Too high and it is hard to put weight through the frame. A common shop method is: stand in usual shoes, arms relaxed, and set the grips at the wrist crease (the bump of the wrist bone). Then walk a few steps and adjust. Frames are often sold in one height-adjustable range. Choose a range where your measurement sits near the middle, not on the last hole.
Elite Care’s listed top height is 35.5″. Drive WA008 and WA009 go to 39″. That gap matters if you are tall. Check folded size if it has to live in a boot or a cupboard, and that you can work the fold lock with the hands that will actually do it.
Wheels, rubber tips and folding
Rubber tips grip the floor. They are usual on frames with no wheels, and on the back legs of two-wheel frames. You lift the frame each step. Shops call the tips ferrules. Spare tips are a normal replacement part.
Front wheels on a Zimmer frame usually do not swivel. They cut lifting, but a tight turn can still mean picking the frame up. They are not the same as a four-wheel rollator.
Sliders (glides) slide over indoor floors. Fit only parts listed as compatible. Treat them as a maker-approved option, not a homemade conversion.
Folding is for storage and cars. Confirm it locks open before each use. Drive frames fold with a simple catch. Other brands differ. If you search “four wheel walking frame”, you almost certainly want a rollator with a seat and brakes.
Check before you order
- The exact model. Drive WA008 has no front wheels. WA009 does.
- Width at the widest point against your tightest door.
- Handle height against a wrist-to-floor measurement in usual shoes.
- User weight limit. The Elite Care frame is rated 115 kg. The Drive frames are rated 180 kg.
- That it locks open when folded, and that rubber tips, wheels or sliders match that model.
- Who you are buying from, and how returns and spare rubber tips work.
Prices in the boxes update from the shop. They can change.
